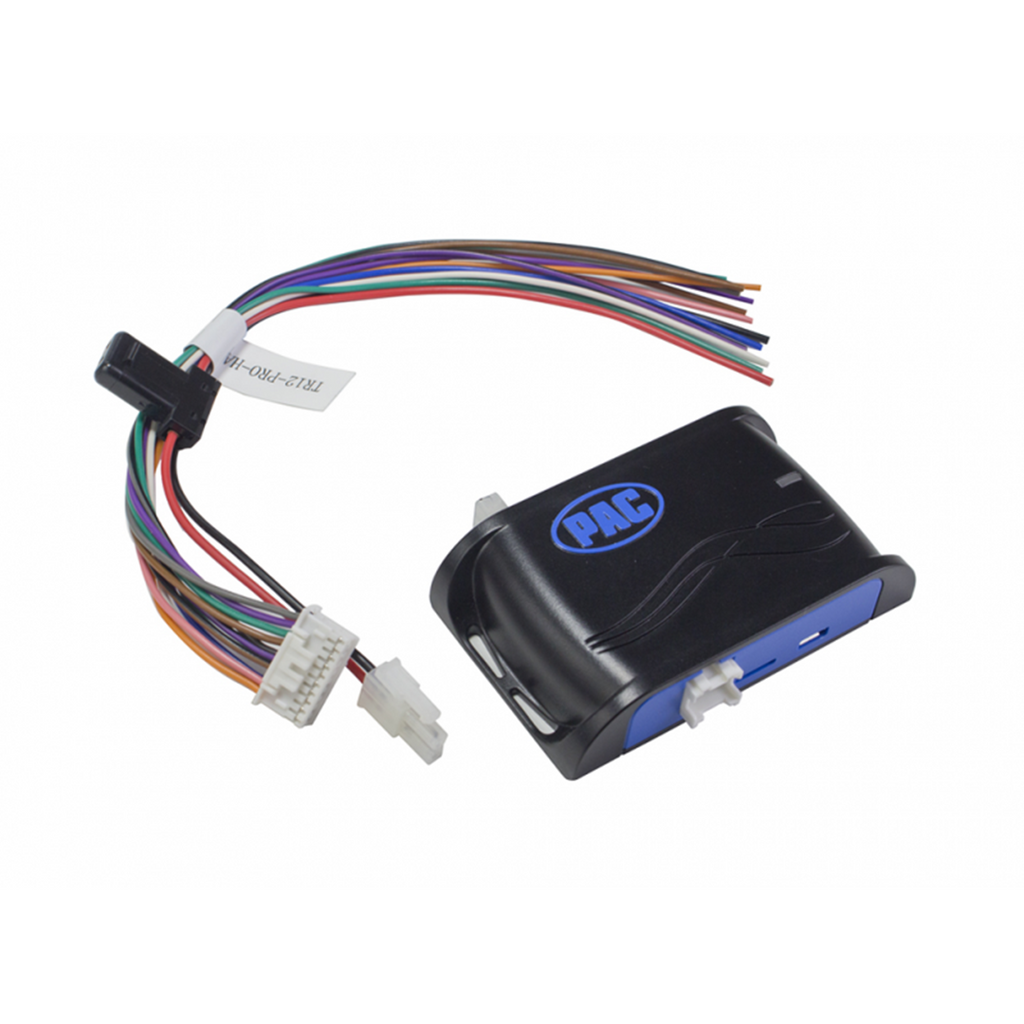

PAC TR12, PC Programmable Universal Trigger Interface

The TR12 is a smart trigger module that offers four channels and can be programmed individually to provide positive or negative outputs. Conveniently, each channel's type of output can be defined as pulsed, latched, timed, ground, and positive 12 Volt with up to three amps of current. The unit is programmable using a PC to control the outputs with accuracy.

Product Features:

• 8 Input Channels
  • 4 positive and 4 selectable positive/negative
• 4 Programmable Output Channels
  • Pulsed
  • Latched / Unlatched
  • Delay (Timed)
  • Toggle
  • Actuator
  • Ground
  • 12V output (up to 3 Amp each)
• Customized PC programming capabilities:
  • Low Voltage Trigger with Adjustable Trigger Voltage
  • Turn-on / Turn-off delay
  • Latching / Pulsed Outputs
  • Door Lock Pulse Generator
  • Channel Expander
  • 1 or 2 Linear Actuators
• Pre-configured presets for most popular uses
  • Alpine, Clarion, and Pioneer radios
• Ability to save and load user-defined configurations
• LED confirmation indicators
